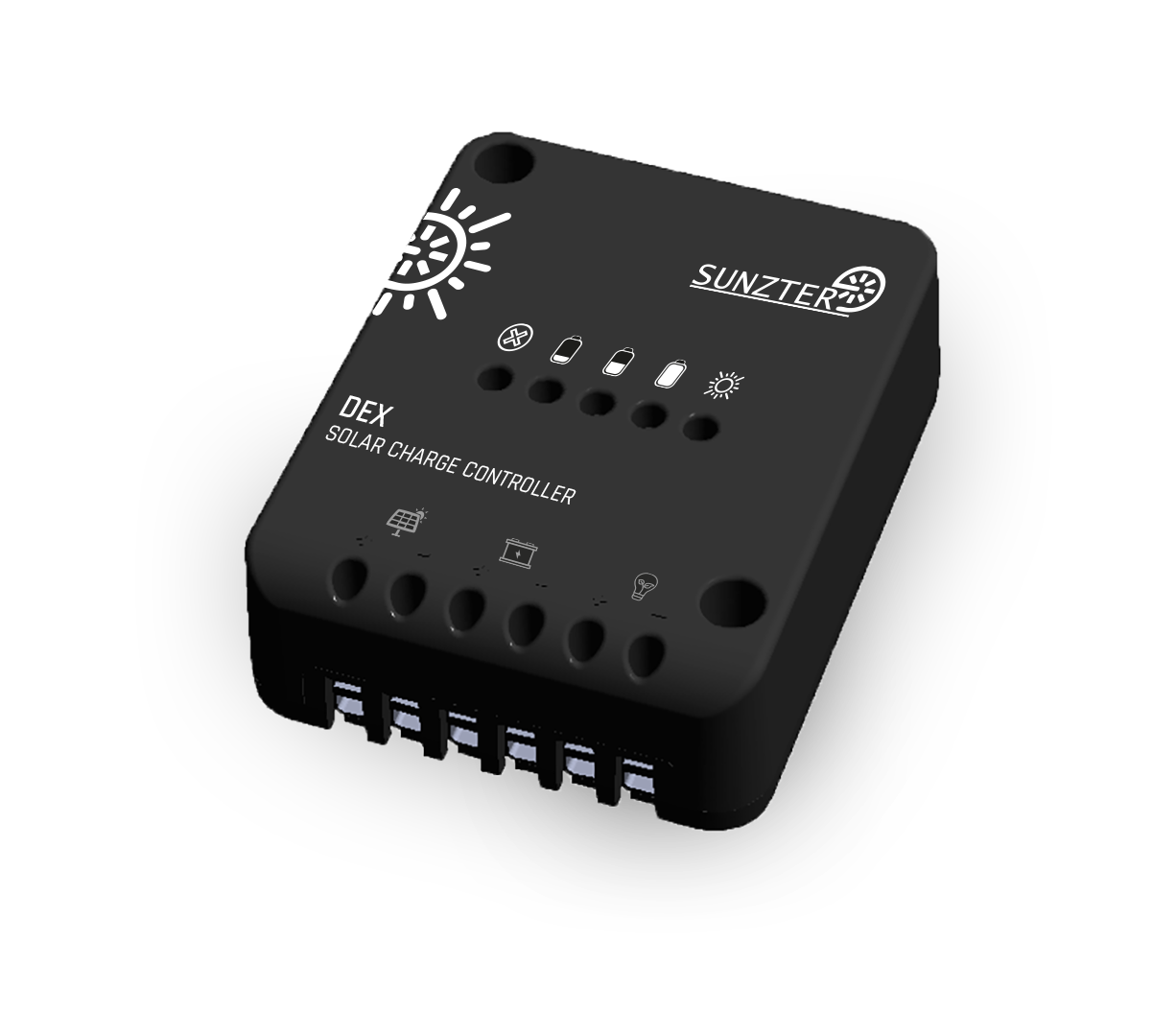

This DexSun PWM Charge Controllers provide the very best in power delivery from Solar Panel to 12V or 24V Battery System. These Pulse Width Modulation (PWM) controller delivers high benefits compared with Standard Charge Controllers by achieving a Constant battery voltage over 3 Stage Charging Algorithms, and thereby getting a higher efficiency on charging, rapid recharging with long life expectancy on battery.
|
Description
|
Parameters
|
|||||
| Nominal System Voltage (Auto Select) | 12v |
24v
|
||||
|
Battery Voltage Range
|
10V-18V
|
20V-36V
|
||||
|
Rated Current
|
05A, 10A, 20A
|
|||||
|
Self-Consumption
|
<15mA
|
|||||
|
Over-Voltage Disconnect
|
15.5V
|
31V
|
||||
|
Low-Voltage Disconnect
|
11V
|
22V
|
||||
|
Load Reconnect Voltage
|
12.8V
|
25.6V
|
||||
|
Equalization Voltage
|
14.8V
|
29.6V
|
||||
|
Boost Charge Voltage
|
14.4V
|
28.8V
|
||||
|
Float Voltage
|
13.8V
|
27.6V
|
||||
|
Maximum Panel Voltage
|
<30V
|
< 50V
|
||||
|
Charging Topology
|
PWM
|
|||||
|
D2D Detect Voltage
|
5.5V
|
|||||
|
Operating Temperature
|
-20°C to 45°C
|
|||||
|
Suitable Battery
|
Lead Acid (Gel, Sealed, Tubular)
Lithium Batteries (Li-Ion, LFP)*
|
|||||
|
Overall Dimensions
|
112 x 90 x 36 mm
|
|||||
|
Net Weight
|
170 gms
|
|||||
|
IP Rating
|
IP20
|
|||||
|
* available for customized order only
|
||||||
